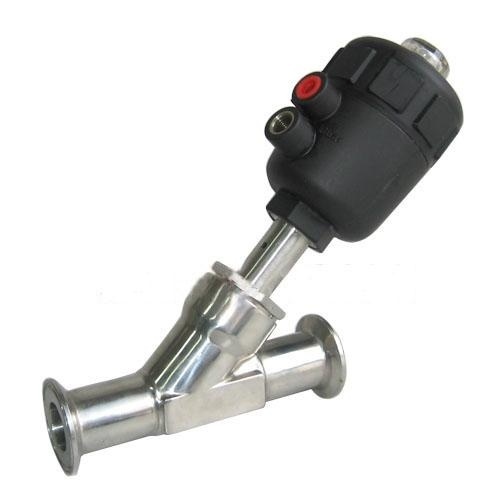

    Dn15-80 Pneumatic Flanged Angle Seat Valve CE/SGS/ISO9001 Specification

    Pneumatic Control Flanged Angle Seat Valve
    Stainless steel angle seat valve

    Medium: Air, water, gas, steam, oil

    Material: Stainless steel


    Port size: 1/2"~3"

    2/2-way pneumatic operated angle-seat valves

    Feature:

    1. Media: Neutral and aggressive liquids and gases

    2. Medium Temperature: -10~+180, PTFE SEAL

    3.316 Stainless steel valve body

    4. External pilot ensure long service life.

    5. The self-adjusting gland improves the sealing performance.

    6. Large flow, fast response.

    Technology Parameter

    Model Pipe Connection Kv Value Max. Pressure Resistance Min. Pressure Resistance Performe Sizemm direction of flow polyamide Aluminum alloy KLJZF-15 G1/2 4.2 0~1.6 0.39 50 A OR B KLJZF-20 G3/4 8 0~1.1 0.39 50 KLJZF-25 G1 19 0~1.1 0.42 63 KLJZF-32 G11/4 27.5 0~1.5 0.5 63 100 KLJZF-40 G11/2 42 0~1.25 0.44 63 100 KLJZF-50 G2 55 0~1.0 0.4 125

    Installation & Maintenance:

    1 Clean the pipes carefully from any residue, dribble or welding residue, to avoid any damage to the seal.
    2 To be installed as required, preferably with actuator in upright position
    3 Connect the pipes according to the reference points (fl ow direction) found on the valve body. Only disassemble the actuator if required by customer.
    4 Before taking the valve apart, depressurize the media supply and pilot air supply piping system.


    Factory drawing:

    warehouse
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve

    workshop:
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve


    Other products:
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve

    Certificate:
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve
    Pneumatic Control Flanged Angle Seat Valve



    FAQ

    Q : Are you a factory or a trading company?
    A : We are a R & D factory.

    Q : Which country do you export to?

    A : We can export to any country according to buyer's need.

    Q : Do you accept the customized order?

    A : YES!


    Q : What is your main market?
    A : Southeast Asia, Middle East, North America, South America, Europe, etc.


    Q : Can you give me a discount?
    A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
    If the quantity is large, we can consider giving you a discount.


    Q : If the product has quality problems, what will you do?
    A : We will be responsible for all quality problems.



    Q :What is your payment term?
    A :1.T/T, 30% down payment, balance paid before shipment.
    2. Letter of credit.


    Q: If the product has quality problems, what will you do?
    A: We will be responsible for all quality problems.
